Quick and Easy Multi-Max Alignment



Axle Alignment for Multi-Max Suspension

(A paper-copy of this instruction can be found on page 48/section 10.1 of your owner's manual)

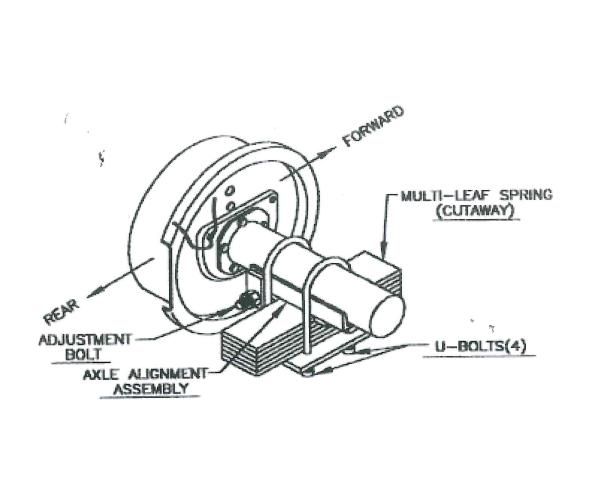

  1. Loosen the U-Bolt nuts before adjusting the "axle alignment assembly"
  2. Make approximate adjustments to the adjustment bolt by following the instructions below.
  3. Tow the trailer straight, approximately 8-10 feet and stop. Make necessary final adjustments.
  4. Re-tighten the U-Bolt Nuts Firmly.

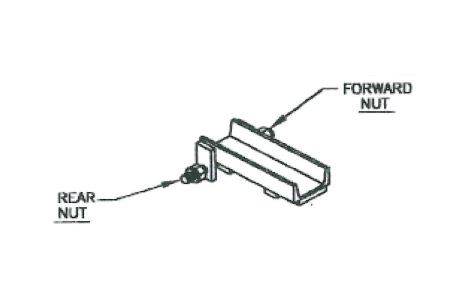

Adjustment Bolt Instructions


  • Turn nuts clockwise to tighten; counterclockwise to loosen.
  • The loosening of the rear nut and tightening of the forward nut will turn the arle toward the left side of the road.
  • Loosening the forward nut and tightening the rear nut will turn the axle towards the right side of the road.
