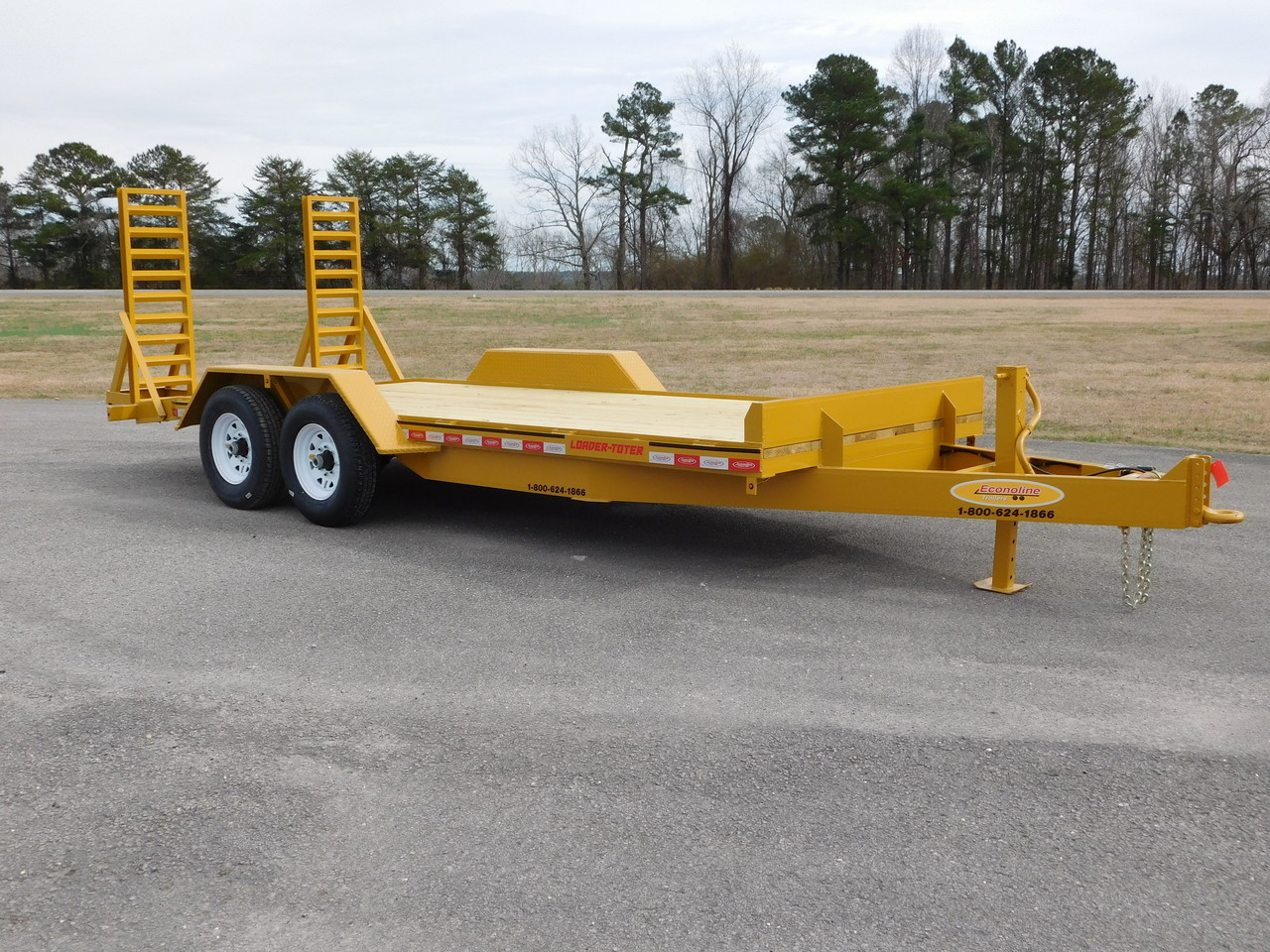

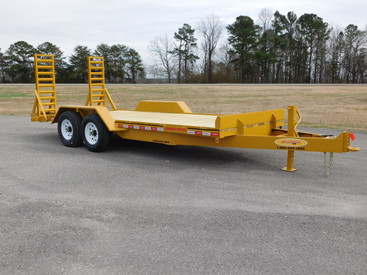

7-Ton Landscape Dovetail (Loader Toter) AP0718DE

Hitch Type: 2 bolt, 5 position pintle hitch

Axles: (2) commercial grade, 7000 lb. capacity

Bed Type: dovetail

Bed Length: 18' standard (16' flat/2' dovetail)

Capacity: 16,100 lb. GVWR

Trailer Weight: 3,350 lb. (approx.)

Brakes: 12"x 2" electric brakes

Tires: ST 235/80 R16

Please Note: Trailer may be shown with optional upgrades

Click Here for Spec Sheet

Model	GVWR	Hitch Type	Bed Length	Bed Width	GAWR	Empty Weight
AP0718DE	16,100 lbs.	Pintle or Ball Hitch	18′ (16′ + 2′)	81″ BTF	2 @ 7,000#	3,550*
AP0720DE	16,100 lbs.	Pintle or Ball Hitch	20′ (18′ + 2′)	81″ BTF	2 @ 7,000#	3,600**
AP0722DE	16,100 lbs.	Pintle or Ball Hitch	22′ (20′ + 2′)	81″ BTF	2 @ 7,000#	3,650*

	Standard	Options
Mainframe	8" Channel @ 11.5#/ft
Crossmembers	3" Channel @ 4.1#/ft
Siderails	4" x 6" Angle
Rubrail	Heavy-Duty 4" Rubrail with 5" Stake Pockets
Stoprails	8" Channel @ 11.5#/ft
Axles	2x 7,000# Commercial Grade	8k Axle Upgrade
Tires	235/80R16 10-Ply	235/85/R16 14-Ply 215/75R17.5
Brakes	Electric Brakes	Surge Brakes
Suspension	Multi-Leaf
Wheels	16" 8-Lug
Bed Height	25" from ground level (approx)
Hitch Type	Multi-Position Pintle Hitch	Demco Automatic Latching 2-5/16 Ball
Jack	Single Speed Jack	Single 2-Speed Jack
Ramps	Stand-Up Spring Loaded Ramps	Wood-Filled Ramps
Safety Chains	3/8" Grade-70 Safety Chains with Hooks
Stake Pockets	5" Stake Pockets spaced behind Rubrails	Stake Pocket D-Rings Stake Pocket Spare Tire Mount
Trailer Plug	7-Pin RV-Style
Lighting	LED Lighting (Grommet Mounted)
Wiring	Sealed Modular All-Weather Harness
Paint Type	Professional Finish
Brake-A-Way Kit	Standard Brake-A-Way Kit with Battery
Storage	Chain Storage	Chain Storage with Locking Lid
Pipe Chain Spools	3" Pipe Chain Spools between Stake Pockets

Please call 800-628-9748 for more info
