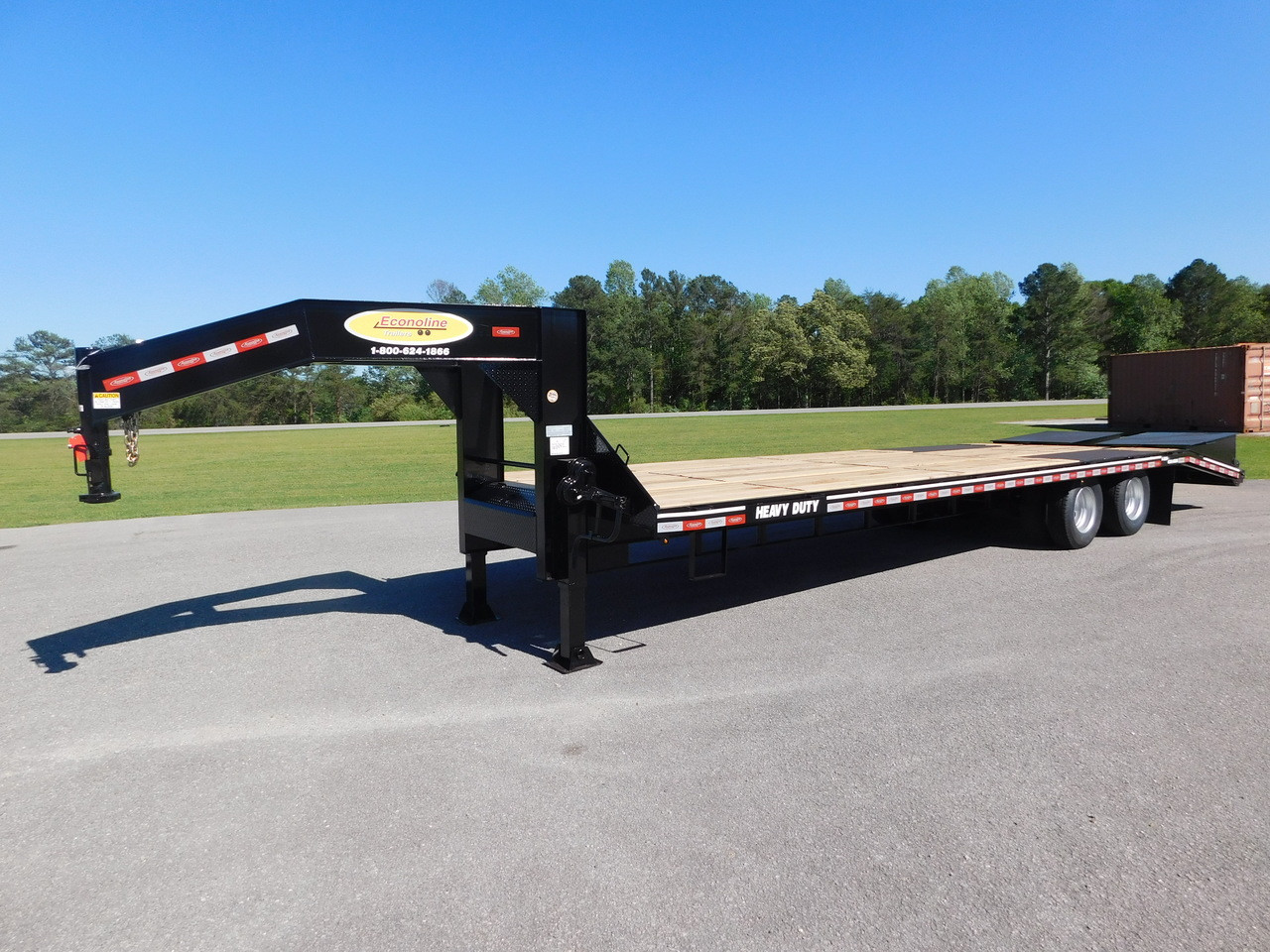

10-Ton Dual Tandem Gooseneck Dovetail

Hitch Type: adjustable gooseneck with 2 5/16" coupler

Axles: (2) 10,000 lb. axles with oil bath bearings

Bed Type: gooseneck

Bed Length: 25' standard (20' flat/5' dovetail)

Bed Width: 102" standard

Bed Height: 36" from ground level (approx.)

Capacity: 25,500 lb. GVWR

Trailer Weight: 5,600 lb. (approx.)

Brakes: 12 1/4" x 4" electric brakes only

Tires: 235 80R 16 radials

Please Note: Trailer may be shown with optional upgrades

Click Here for Spec Sheet

Model Overview
Standard Features & Options

Model Overview

Model	GVWR	Hitch Type	Bed Length	Bed Width	GAWR	Empty Weight
DG1025DE	25,500 lbs.	Gooseneck	25′ (20′ + 5′)	102″	2 @ 10,000#	7200*
DG1030DE	25,500 lbs.	Gooseneck	30′ (25′ + 5′)	102″	2 @ 10,000#	7600**
DG1032DE	25,500 lbs.	Gooseneck	32′ (27′ + 5′)	102″	2 @ 10,000#	8600**
DG1040DE	25,500 lbs.	Gooseneck	40′ (35′ + 5′)	102″	2 @ 10,000#	10100**

*Weights are approximate

	Standard	Options
Mainframe	12" I-Beam @ 19#/ft
Crossmembers	3" Channel @ 4.1#/ft
Gooseneck	12" I-Beam @ 19#/ft
Siderails	5" Channel @ 6.7#/ft
Rubrail	Heavy-Duty 4" Rubrail with 5" Stake Pockets
Axles	2x 10,000# Dual Wheel Oil Bath Commercial Grade
Flooring	Oak Decking	Steel Decking Optional Pine
Tires	235/80R16 10-Ply	235/85/R16 14-Ply 215/75/R17.5 16-Ply
Brakes	Electric Brakes	Electric/Hydraulic Brakes
Suspension	Multi-Leaf
Wheels	16" 8-Lug	17.5" 8-Lug Heavy Duty Wheel
Bed Height	36" from ground level (approx)
Hitch Type	2-5/16 Gooseneck	Kingpin on Gooseneck Coupler
Jack	Dual Jacks	Dual 2-Speed Jacks Hydraulic Jack Dual Hydraulic Jacks
Ramps	Heavy-Duty Spring-Loaded Ramps	Stand-Up Ramp Arms Hydraulic Ramps (36" x 72") Super Ramps Wood-Filled Ramps
Safety Chains	3/8" Grade-70 Safety Chains with Hooks
Stake Pockets	5" Stake Pockets spaced behind Rubrails	Stake Pocket D-Rings
Trailer Plug	7-Pin RV-Style
Lighting	LED Lighting (Grommet Mounted)
Wiring	Sealed Modular All-Weather Harness
Paint Type	Professional Finish
Brake-A-Way Kit	Standard Brake-A-Way Kit with Battery
Mudflaps	Standard 'Econoline Trailers' Mudflaps
Pipe Chain Spools	3" Pipe Chain Spools between Stake Pockets
Step/Handle	Retractable Bed Steps on each side of bed

Please call 800-628-9748 for more info
