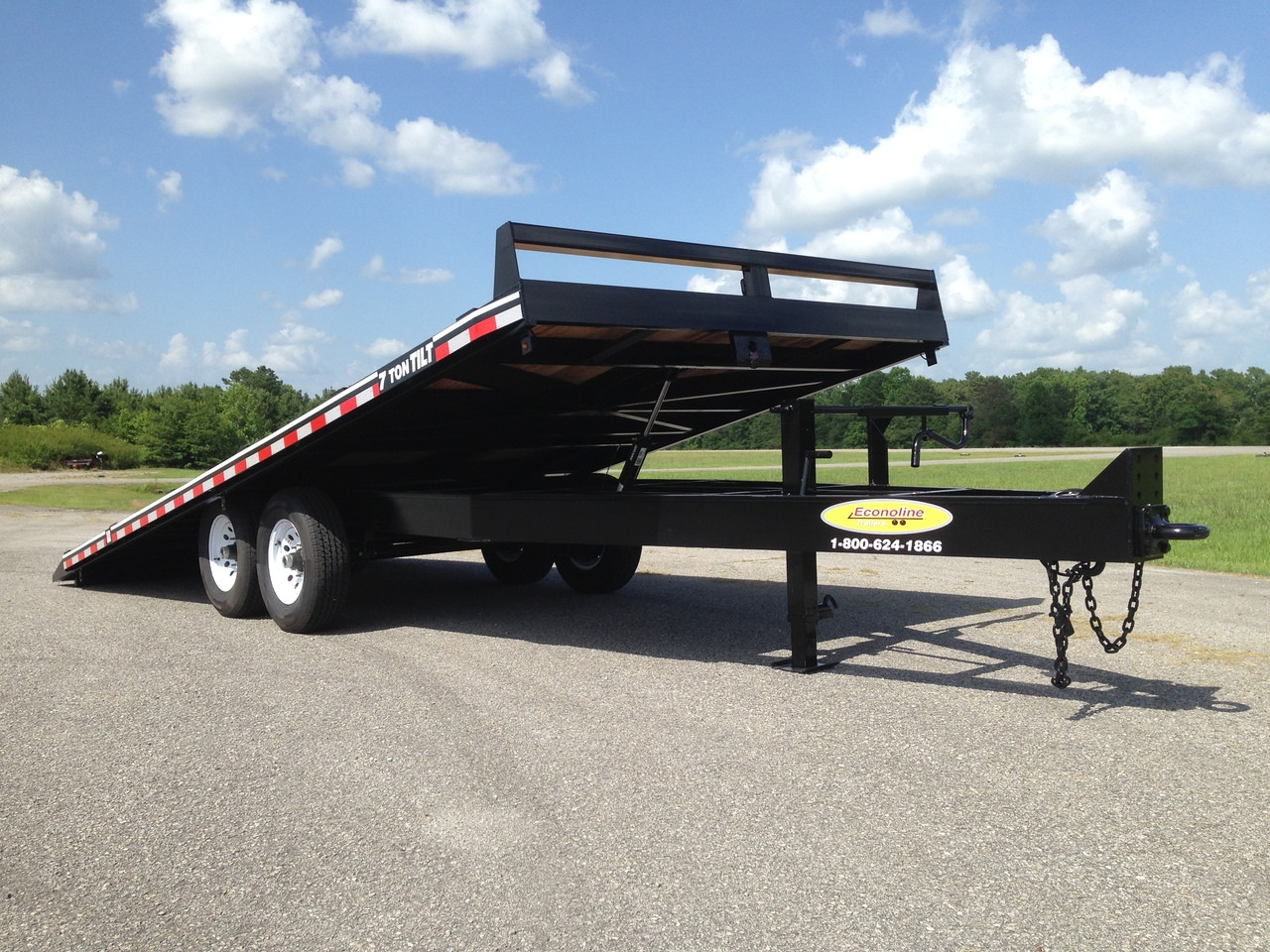

7-Ton Deckover Tilt Trailer

Hitch Type: 4-bolt, 5-position pintle hitch

Axles: (2) commercial grade, 7,000 lb. capacity

Bed Type: tilt

Bed Length: 21' standard

Bed Width: 102" standard

Bed Height: 35" from ground level (approx.)

Capacity: 16,100 lb. GVWR

Trailer Weight: 5,300 lb. (approx.)

Brakes: 12"x2" electric only

Tires: 235 80 R 16 radials

Please Note: Trailer may be shown with optional upgrades

Click Here for Spec Sheet

Model	GVWR	Hitch Type	Bed Length	Bed Width	GAWR	Empty Weight
BP0721TE	16,100 lbs.	Pintle or Ball Hitch	21'	102"	2 @ 7,000#	4500*

	Standard	Options
Mainframe	8" Channel @ 11.5#/ft
Crossmembers	4" Channel @ 5.4#/ft
Siderails	6" Channel @ 8.2#/ft
Rubrail	Heavy-Duty 4" Rubrail with 5" Stake Pockets
Stoprails	8" Channel @ 11.5#/ft
Axles	2x 7,000# Commercial Grade
Flooring	Oak Decking	Pine Decking Steel Decking
Tires	235/80R16 10-Ply	235/85/R16 14-Ply
Brakes	Electric Brakes	Surge Brakes
Suspension	Multi-Leaf
Wheels	16" 8-Lug
Bed Height	35" from ground level (approx)
Hitch Type	Multi-Position Pintle Hitch	Demco Automatic Latching 2-5/16 Ball
Jack	Single Speed Jack	Single 2-Speed Jack
Safety Chains	3/8" Grade-70 Safety Chains with Hooks
Stake Pockets	5" Stake Pockets spaced behind Rubrails	Stake Pocket D-Rings
Trailer Plug	7-Pin RV-Style
Lighting	LED Lighting (Grommet Mounted)
Wiring	Sealed Modular All-Weather Harness
Paint Type	Professional Finish
Brake-A-Way Kit	Standard Brake-A-Way Kit with Battery
Mudflaps	Standard 'Econoline Trailers' Mudflaps
Storage	Chain Storage	Chain Storage with Locking Lid
Pipe Chain Spools	3" Pipe Chain Spools between Stake Pockets

Please call 800-628-9748 for more info
